nº1001



Proximity detector with one transistor, supply 2xR03

nº1000



Square root(1)

Square root (0,81)

Square root (2)

Voltage square root extractor; about 60mV remaining error; supply +/-5V_USB

nº999



Powerbank stand-by mode disabler. Many powerbanks will enter in stand-by mode when load current drops bellow a threshold level ranging from microamps up to about 50mA. Others will start hiccup its output voltage. A simple circuit with 2 transistors will prevent stand-by mode at the expense of only a few microamps.

nº998



Simple thermometer with silicon diode sensor can measure outdoor temperatures ranging from -50ºC up to +50ºC, supply 9V

nº997



The simplest capacitance meter for electrolytic capacitors with indirect reading, supply 1,5V

nº996

Minimalist led chaser with 2 modes: tact-switch short press runs led ring oscillator; tact-switch long press runs inverted led chaser; supply 3V



nº995



Reaction time measuring. By pressing COUNTING tact switch a new test is started. The middle tact switch should be pressed as soon as GO red led turns on; waiting time is variable and cannot be predicted; digital voltmeter displays reaction time. (1mS per mV). Pressing RESET tact switch erases current reading for new test; supply +5V_USB

nº994



Heads or tails game with 2 mini incandescent lamps, supply +5V_USB

nº993



Random flashing led bar; individual stages controlled by SCR, supply 24V

nº992



Incandescent lamp flashes controlled by 1 optocoupler, supply +5V_USB

nº991



Bicolor led flashes controlled by 1 optocoupler, supply +5V_USB

nº990



Simple potentiometer tester with 3 transistors: 2 leds OFF: ok / 2 leds ON: defective wiper / 1 led ON: defective resistence element / Suitable for any resistance value; also tests sliding noise; supply 2xR03

nº989

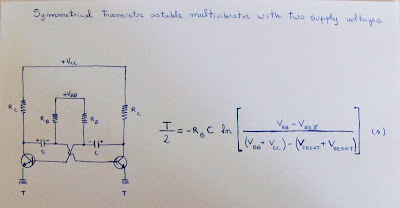

Symmetrical astable multivibrator with two supply voltages.

nº988



Simple transistor astable multivibrator with f_max/f_min>200, supply 230Vac/50Hz

nº987



Mains supplied roof light is turned-on only by fast switching action on the wall switch. As there is no need for extra stand-by power, the module can be integrated in a E27 lamp holder adapter unit.

nº986



Ultrasonic detector using standard electret condenser microphone. Conversion to audible range is achieved by frequency mixing with local oscillator, supply 3V

nº985



nº984



Analog capacitance meter 10nF-2200uF, supply 3V

nº983



"knight rider" with 10 leds, controlled by 1 bipolar transistor, supply 5V

nº982

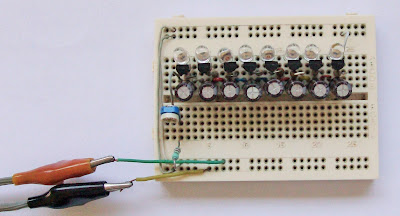

Led bar with 8 white leds, controlled by 1 transistor, supply 9V

nº981



Sensitive regenerative receiver for MW band (550kHz-1,65MHz) with 1 transistor; uses standard low impedance earphones (32+32 ohm), supply 3V.

nº980



1 transistor AM band regenerative receiver,loudspeaker output, supply 9V

nº979



Alternative dimmer without capacitors and trigger diode; 2 power control ranges: 25%-50% and 50%-100%; supply 230Vac/50Hz

nº978



Light activated red led astable multivibrator can be triggered at long distance by laser beam, supply 1xLi-ion cell

nº977

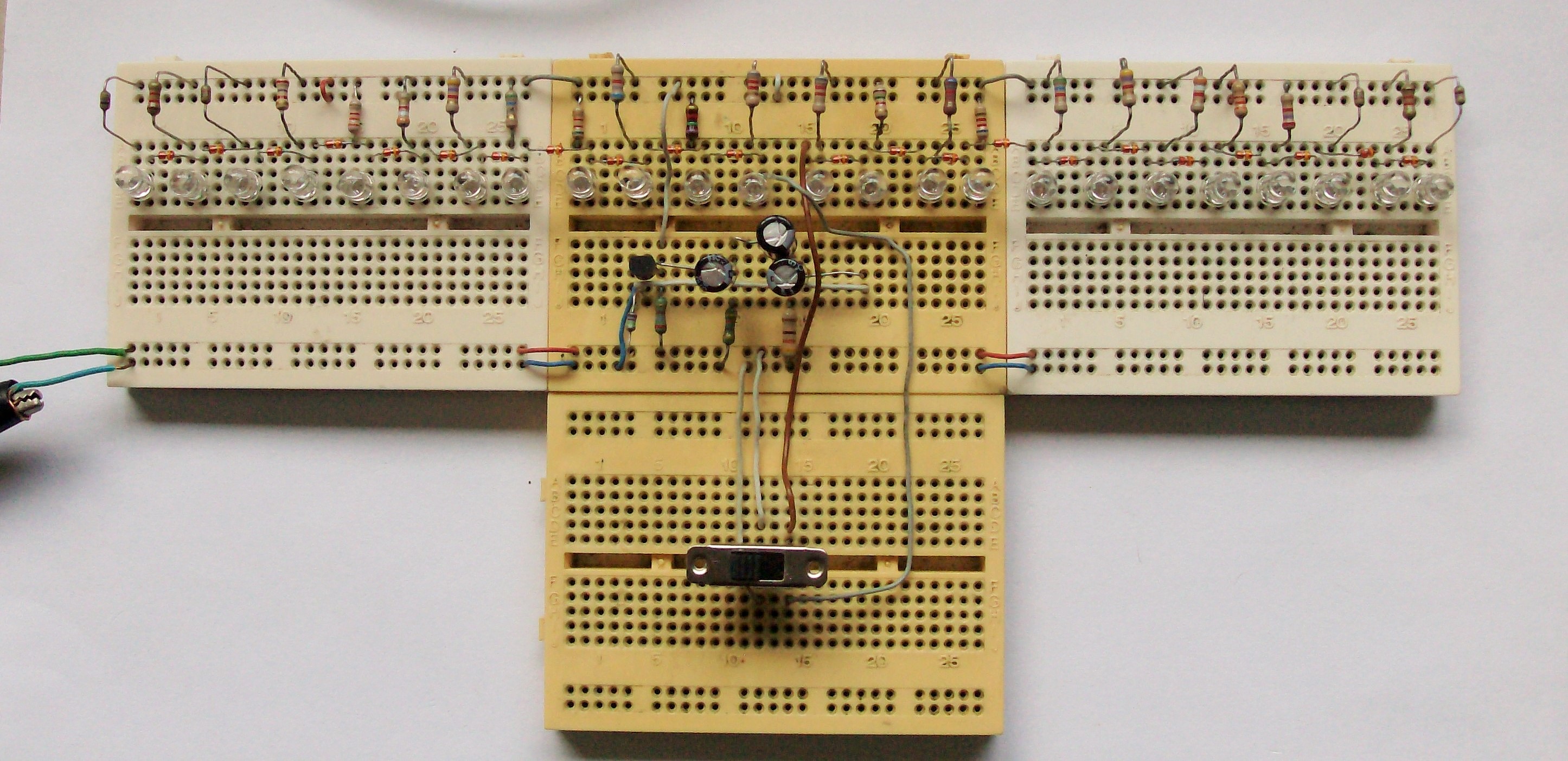

Breathing knight rider sequencer, 10 leds, 3 transistors, supply 12V



nº976



Mains supplied wheel of fortune with 6 dual leds.
